Pilot

Special Lens Designs



Special design with two power zones



Flying a plane is one of the most challenging jobs, because of staying extremely focused and work with highest precision while being responsible for the lives of many passengers. This kind of work also means a high level of stress for the pilots‘ eyes, since there is a need to have a very good near view in the upper as well as the lower lens area to read the instruments and a good far view in the middle area. That is why OptoTech developed a completely different progressive lens to perfectly meet these special requirements. A special near zone at the top of the lens enables the pilot to have a good view at his instruments above him. Although this design was once developed for pilots it is also a great lens for other specialists in different kind of jobs like plumbers, mechanics and even pharmacists.
The Pilot design is currently available in 4 different versions.

More Details



Wearer's Benefit

  • Switched optical zones

  • Very good upper reading comfort

  • Natural and economic viewing position

  • Greater comfort

  • Fully customized lens

  • Easy adaptation between zones



Available corridor length

>13 mm

Fitting cross position

0 mm

Recommended fitting height

16 mm

Min. fitting height

15 mm

Inset

2.5 mm

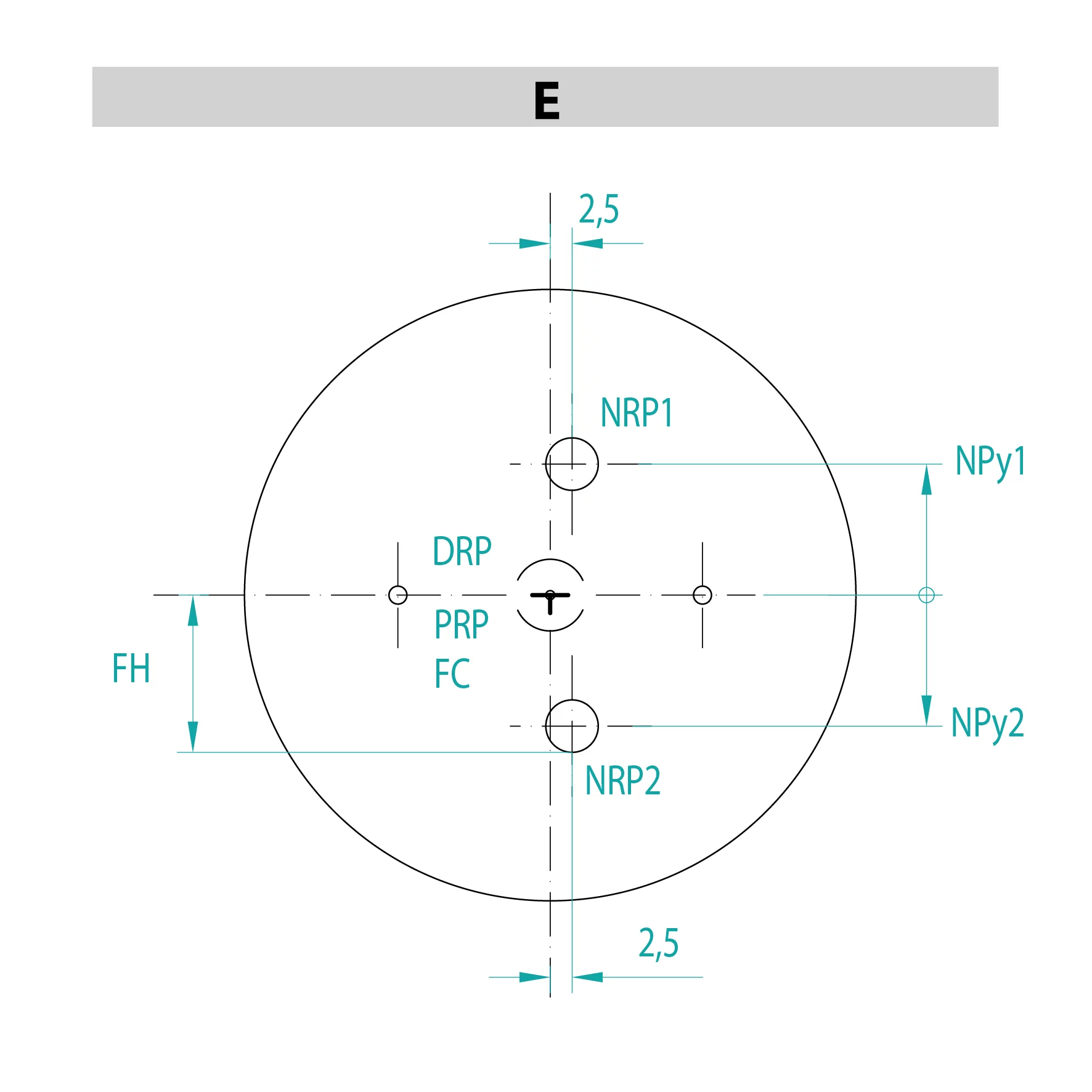

Centering chart

E



Ideal for

Wearers who require a special and enhanced view in the upper part of the lens

Application

Focusing on near objects at eye level or above e.g. for Pilots, Car mechanics, Painting/Renovation etc.

Centering Chart
